| Customization: | Available |
|---|---|
| After-sales Service: | Telephone 24-Hour Service |
| Warranty: | 14 Months |
| Quantity: | |
|---|---|

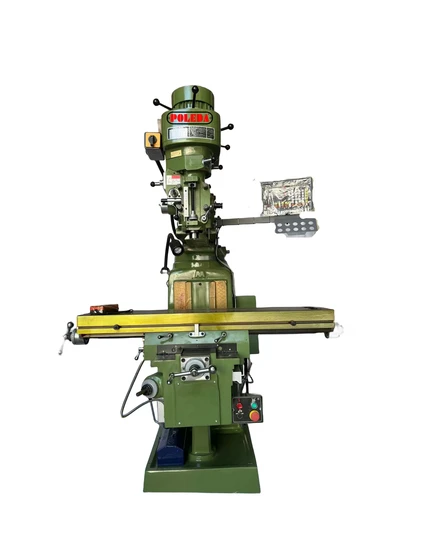

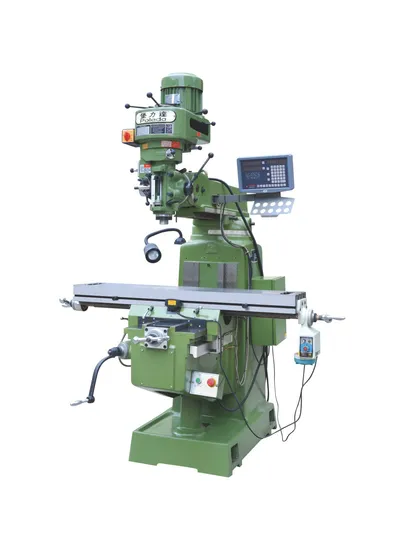

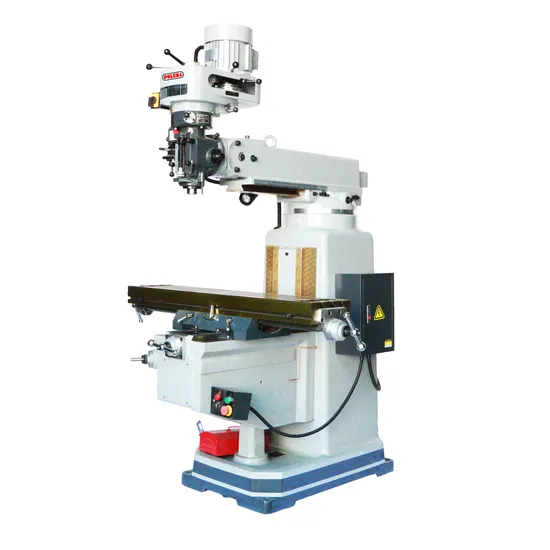

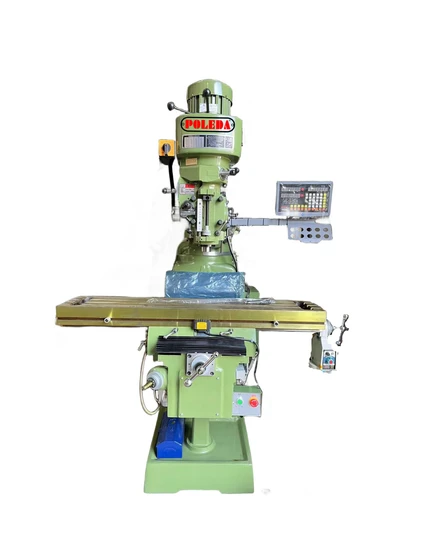

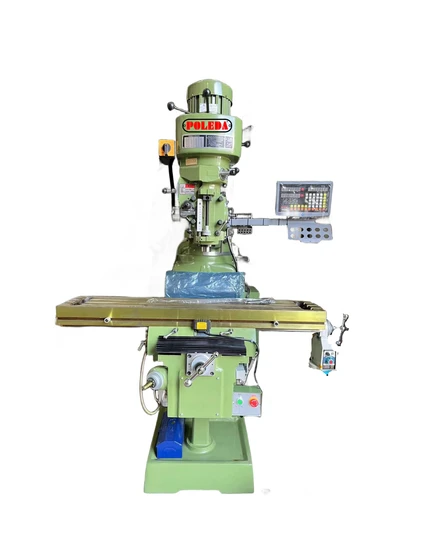

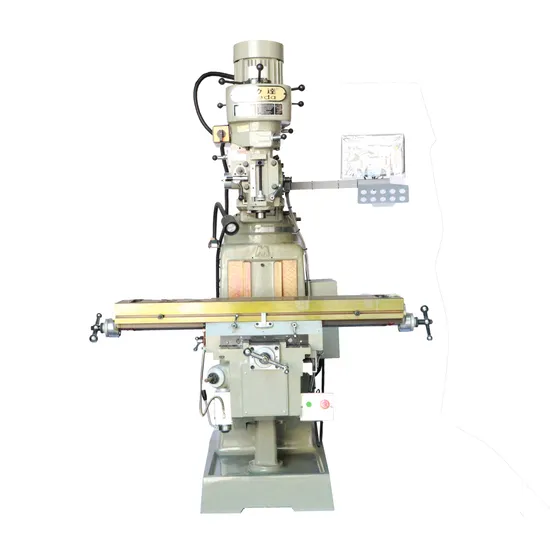

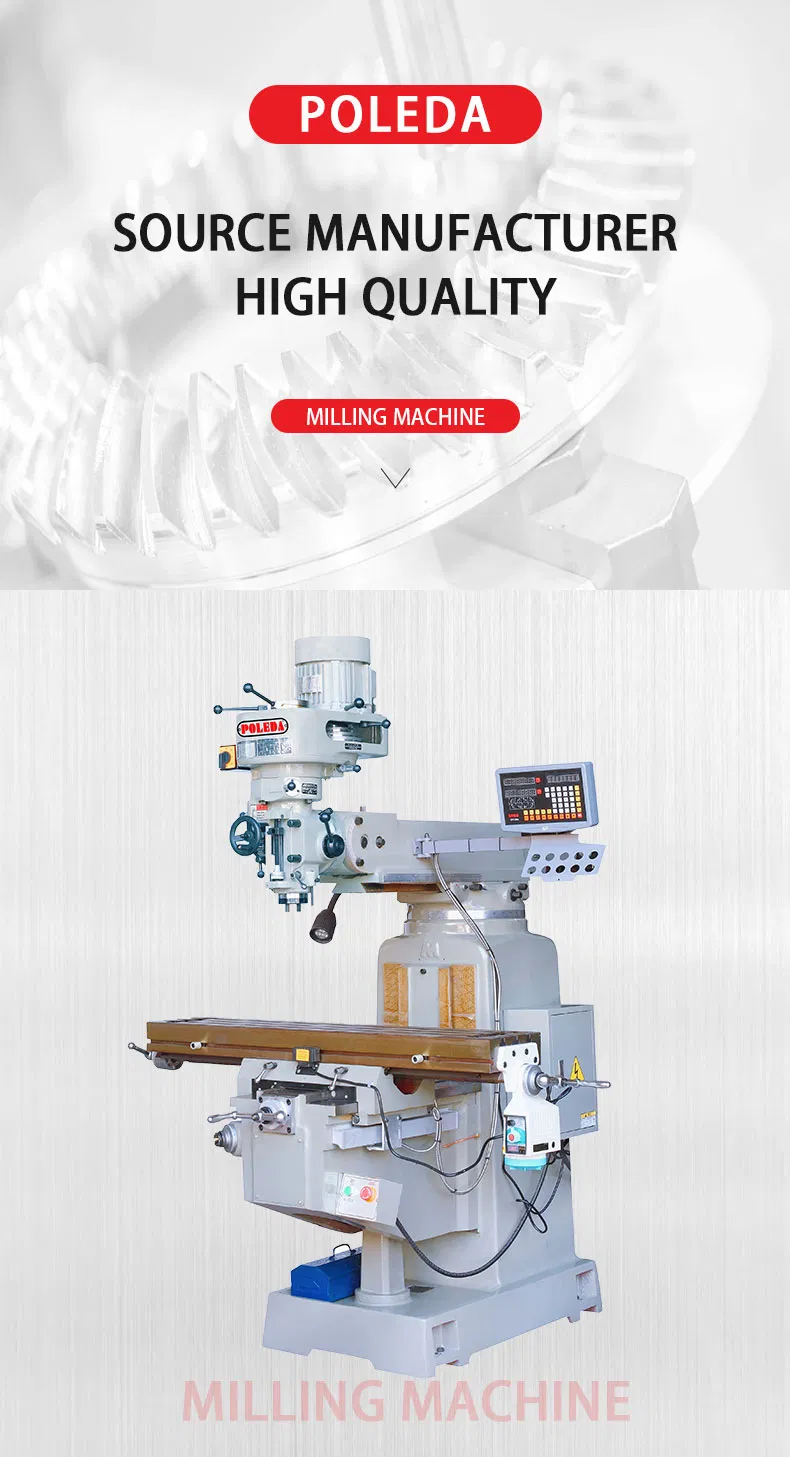

A milling machine is an essential machine tool utilized in metal cutting processing, designed to cut material on machined parts through the rotation of a cutting tool. Renowned for its versatility, the milling machine excels in various applications such as plane milling, surface milling, and gear part fabrication. Additionally, it can handle drilling, reaming, boring, and other intricate processes with remarkable precision.
Basic structure of milling machine:
Structural characteristics
1. The base, fuselage, workbench, middle slide seat, lifting slide seat, and other primary components are meticulously cast with high-strength materials.
These components undergo artificial aging treatment to ensure the long-term stability and durability of the machine tool.

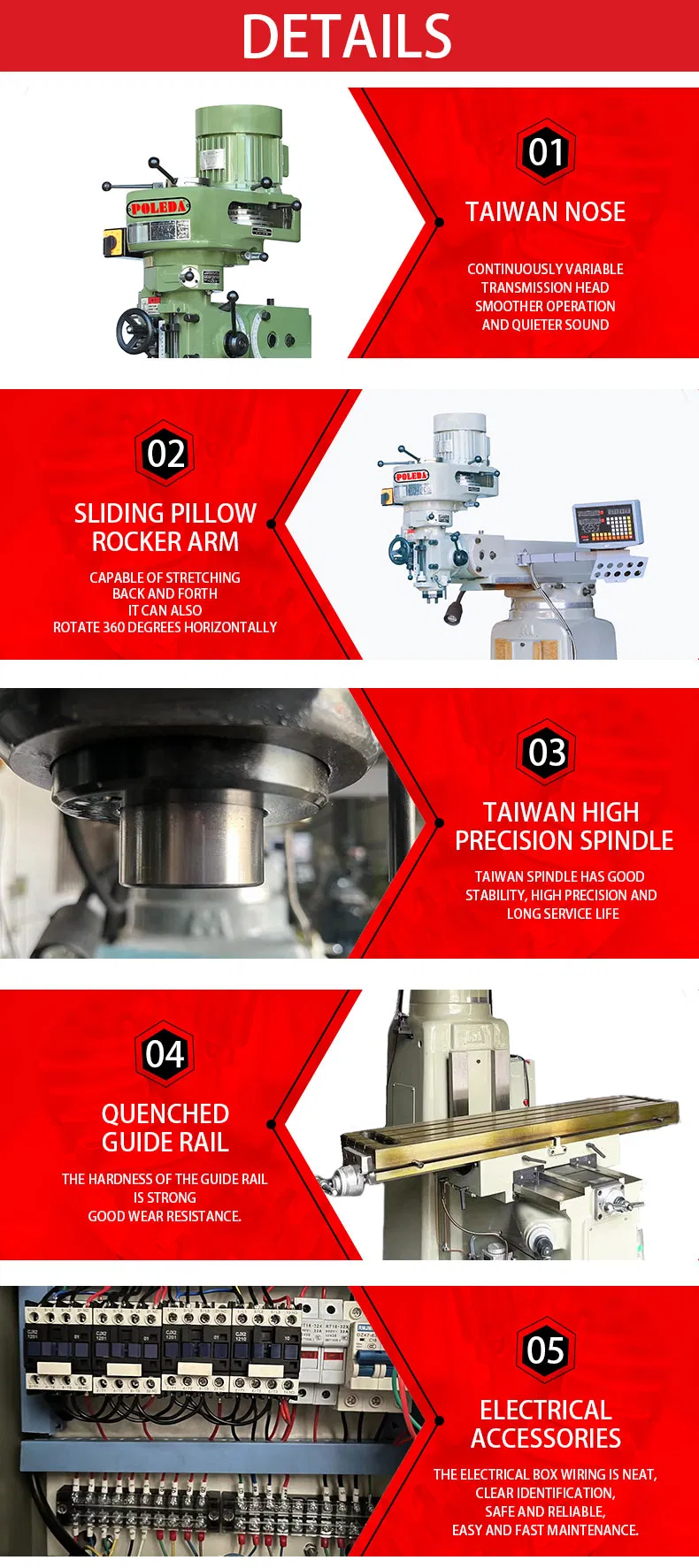

2. The milling head is equipped with a turret milling head, featuring both manual and micro-feeding options, ensuring convenient and precise processing.
The milling head offers ±45° adjustment in the vertical plane and 360° in the horizontal plane, significantly expanding the machining range.
3. The vertical and horizontal tables provide three feeding options: manual feed, mobile feed, and mobile fast feed, offering 8 different feed speeds.
This versatility meets various processing requirements, while the fast feed quickly positions the workpiece, reducing non-machining time.
4. The lifting platform Z-axis can be maneuvered both manually and automatically, with an interlocking mechanism to eliminate safety issues.
5. The table's X direction travel extends up to 800mm, with X, Y, and Z axes guide pairs benefiting from ultra-audio quenching, precision grinding, and scraping to enhance accuracy and extend service life.
This combination improves machining precision and prolongs the machine's service life.
6. A manual lubrication device ensures consistent lubrication of the longitudinal, horizontal, and vertical lead screws and guide rails, reducing wear and maintaining efficient operation.
Meanwhile, the cooling system allows adjustment of the coolant flow by altering the nozzle size to accommodate varying processing needs.
7. The machine's operating system is ergonomically suspended on the upper right side through a support arm, facilitating ease of use.
The operation panel features intuitive, figurative symbols for straightforward and user-friendly operation.
8. The turret milling machine spindle offers versatile options including R8, NT30, and NT40.
9. An enhanced electrical box and controller come equipped with 110V and 220V output sockets for improved functionality.

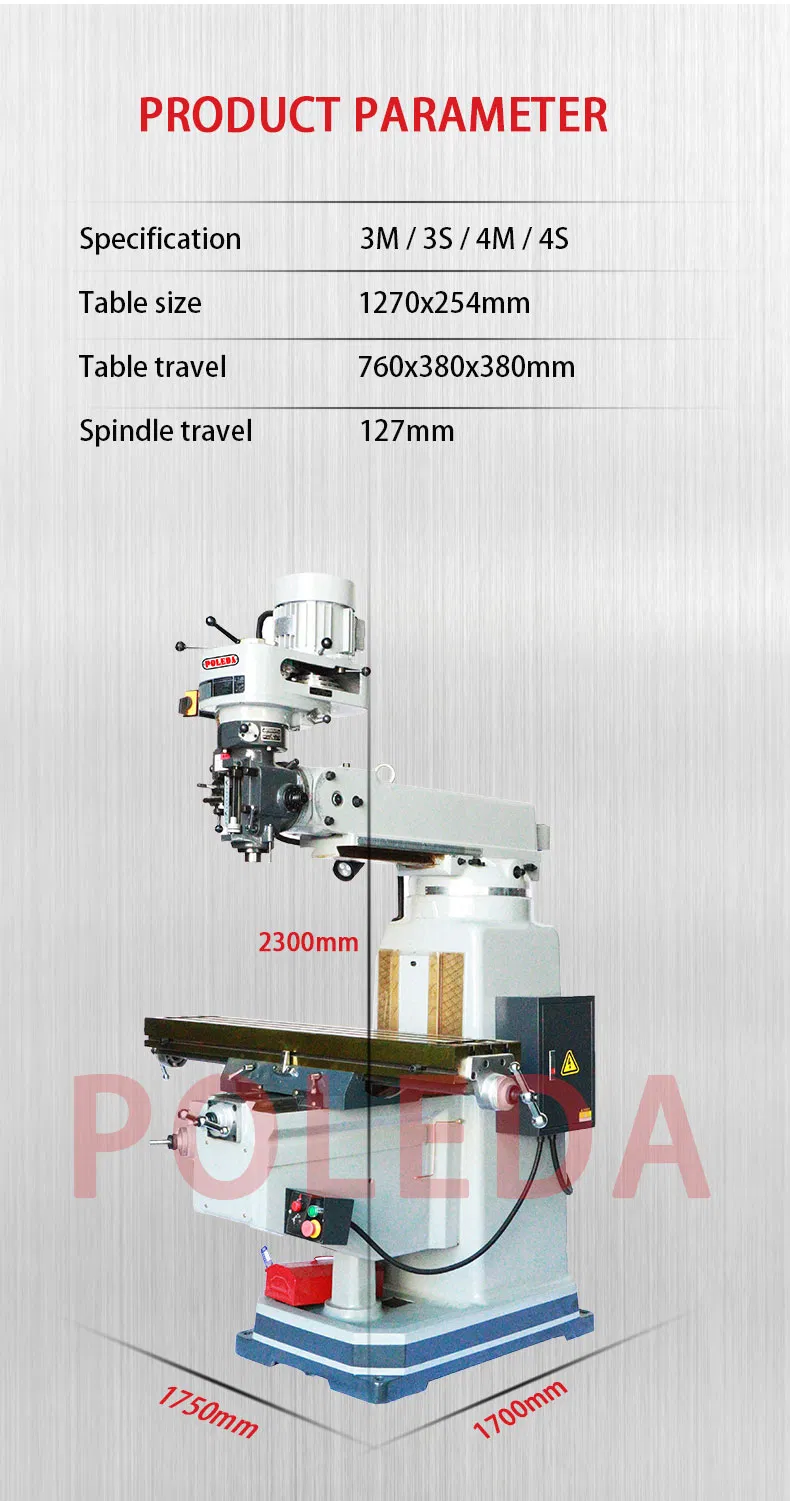

| Product Name | Milling machine | |
| Product model | 3M/3S/4M/4S | |
| Product technical parameters | ||
| dimension | Table size | 1270*254MM |
journey | Left and right stroke(X) | 740MM |
| Front and rear stroke(Y) | 380MM | |
| Up and down stroke(Z) | 360MM | |
| Arm reach | 520MM | |
| Distance from spindle end face to table surface | 50-410MM | |
| Table bearing | 300KG | |
Principal axis coefficient | Spindle taper | R8 |
| Spindle speed | 80-5440RPM(16-speed) | |
| Spindle travel | 127MM | |
| Spindle horse power | 3HP | |
| Milling head | Milling head tilt Angle | 45° front and back |
| Lead screw | Three-axis screw diameter | Tr32mm |
| Three-axis lead screw pitch | 5mm | |
Machine profile dimensions | T-slot (Number * Size * Spacing) | 3-15.88*65MM |
| Machine size (L * W * H)(MM) | 1750*1700*2200MM | |
| Approximate machine weight | 1280kgs | |
| disposition | Accessories name | quantity |
Standard parts for machine tools | 1,Hand oil pump | 1 |
| 2,Work light | 1 | |
| 3,Organ board + protective glue | 1 | |
| 4,Lever | 1 | |
| 5,Tools and toolboxes | 1 | |
| 6,Operating instruction | 1 | |
Special parts for machine tools | 7,Two axis electronic ruler | 1 |
| 8, X-axis automatic feed | 1 | |
| 9, 6 "flat pliers | 1 | |
| 1 | |
| 11, chuck | 1 | |
1.What is the MOQ for your production?
A. The Minimum Order Quantity (MOQ) depends on your specific requirements for color, logo, and other customizations. For some standard items that we have in stock, the MOQ is just 1 set.
2.How to control the quality of the products?
A. We have always placed great emphasis on maintaining a high quality level. Our principle is to consistently providecustomers with better quality, better prices, and better service.
3.What's your main products of your company?
A. We specialize in a wide range of machines, including CNC Machines, Lathe Machines, Milling Machines, Grinding Machines, Vertical Machining Centers, DrillingMachines, Radial Drilling Machines, Sawing Machines, and more.
4. What are your trade terms?
A. Our trade terms include Ex-works, FOB, CFR, and CIF, all of which are acceptable.
5.What's the Payment Terms?
A. We accept T/T payments, with a 30% initial payment upon order and the remaining 70% balance due before shipment.
6.What CNC system do you use?
A. We use CNC systems from FANUC, SIEMENS, MITSUBISHI, SYNTEC, and HCN. The choice depends on your preference.
7.How can I choose the most suitable machines?
A. Send us your product drawings and application requirements, and we will help you select the most suitable machines.
8.What kind of package do you offer?
A. Normally, we use plywood cases to ensure all goods are in good condition. Customized packaging is also acceptable.
9.Can your plant do OEM?
A. Yes, we can do OEM and ODM for any customer without any issues.
10.How about the warranty?
A. The warranty period is one year after delivery. Even beyond the warranty period, we provide lifetime service for our machines.
