| Customization: | Available |
|---|---|
| After-sales Service: | Telephone 24-Hour Service |
| Warranty: | 14 Months |
| Quantity: | |
|---|---|

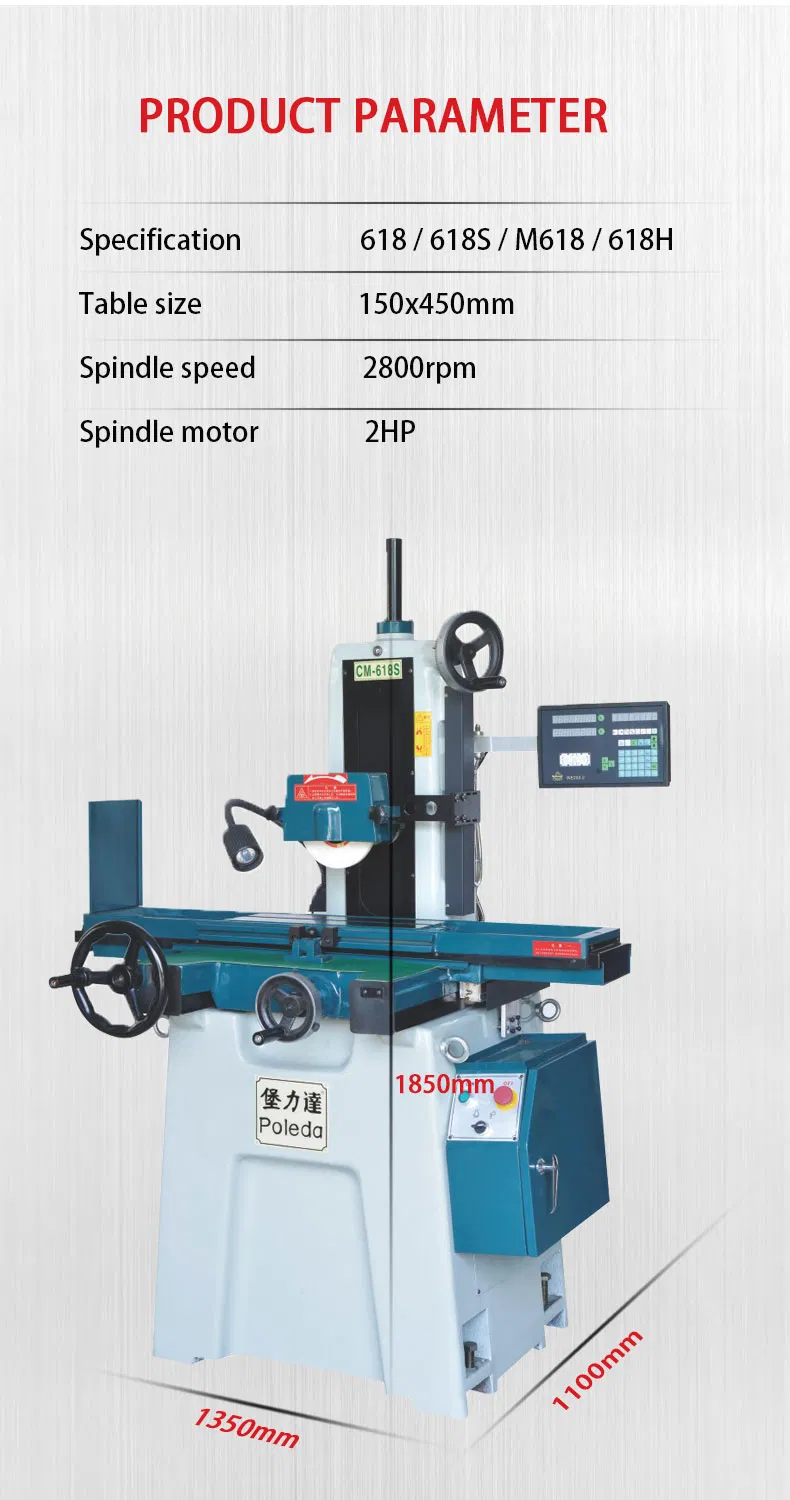

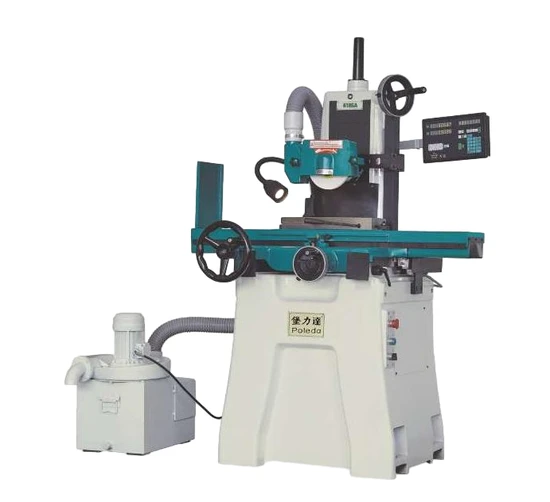

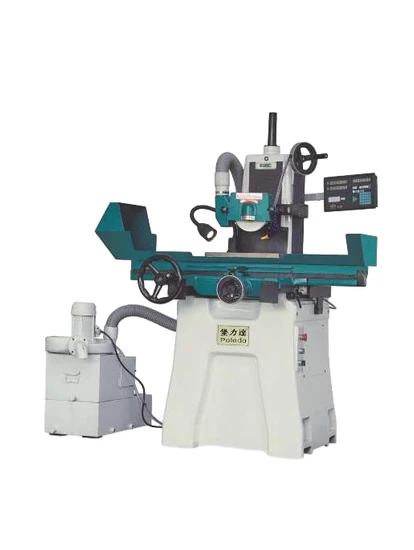

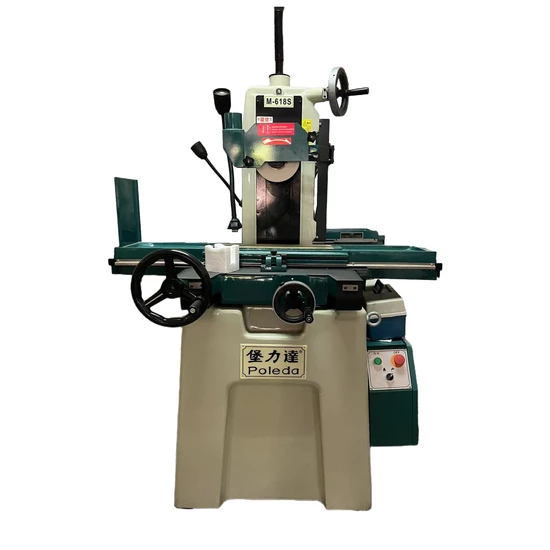

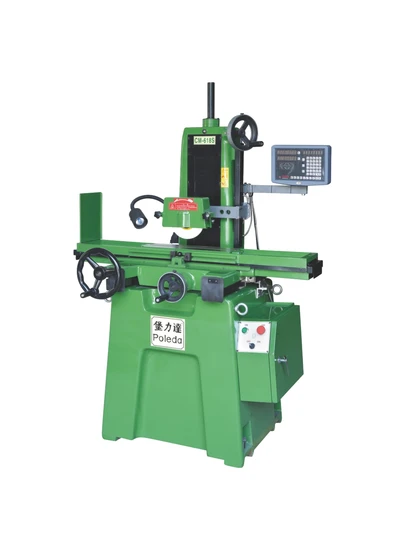

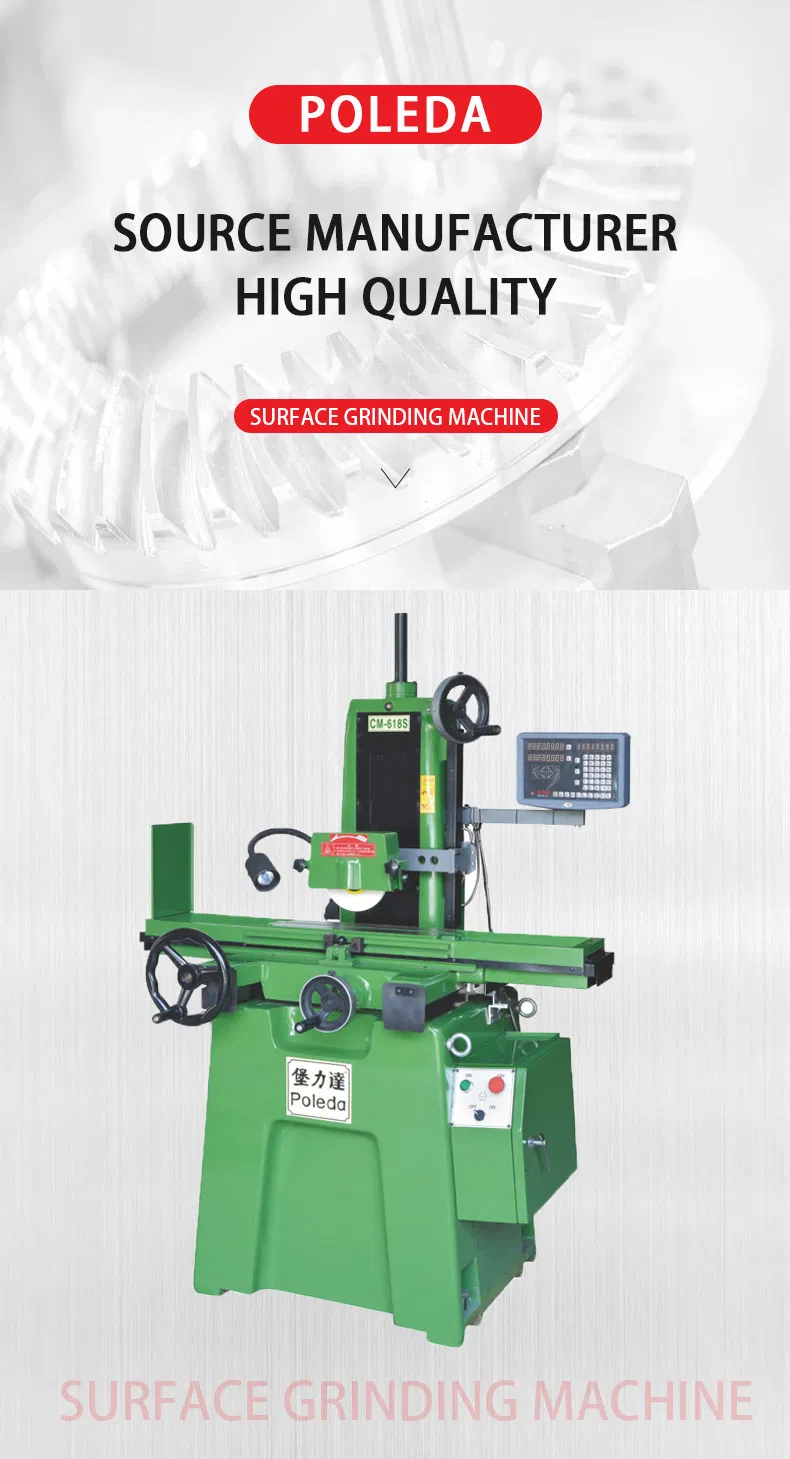

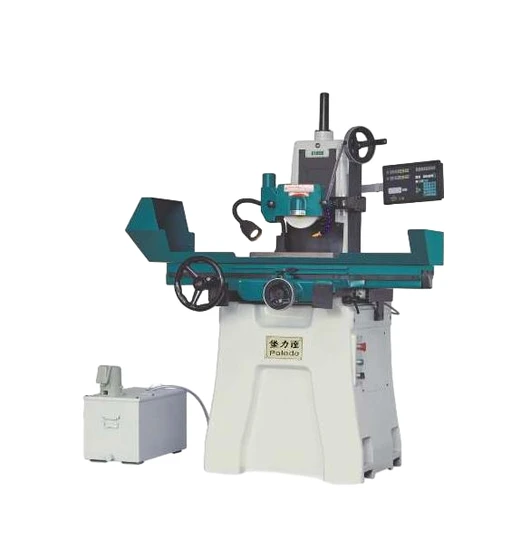

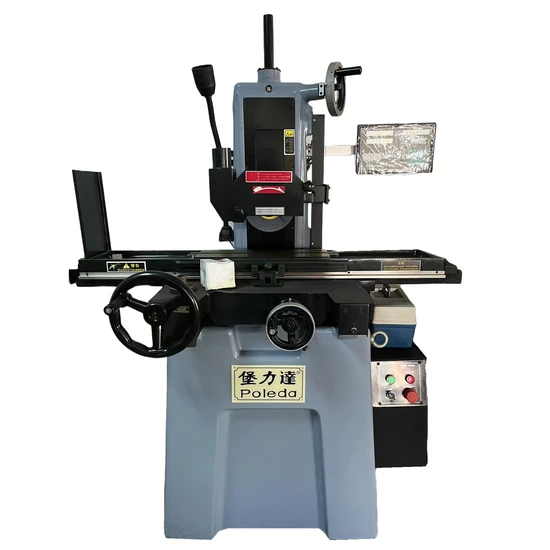

| Product name | Surface grinding machine | |
| Product model | M618 | |
| Product technical parameters | ||
| 1 Table size | 150*450MM(6*18'') | |
| 2 Maximum grinding length | 475MM(18-3/4'') | |
| 3 Maximum grinding width | 185MM(6-1/3'') | |
| 4 Distance between spindle center and table surface | 350-400MM(13.8-15.7'') | |
| 5 Standard disk size | 150*350MM | |
| 6 Left and right feed/manual stroke | 485MM(19'') | |
| 7 Front and rear feed/manual stroke | 180MM(7'') | |
| 8 Hand wheel feed (per turn) | 5MM(0.2'') | |
| 9 Hand wheel feed | 0.02MM(0.001'') | |
| 10 Lift feed/hand wheel feed per scale | 0.005MM(0.0002'') | |
| 11 Grinding wheel size (diameter * width * aperture) | 180*16*31.75MM(7*2/3*1-1/4'') | |
| 12 Spindle speed (50/60HZ) | 2800RPM | |
| 13 Spindle motor | 1.5HP | |
| 14 Weight (approximate) | 850kgs | |
| 15Machine size (L * W * H) | 1350*1050*1850MM | |
| Grinding machine configuration | Accessories name and specification | Quantity |
Standard parts for machine tools | 1,Grinding wheel and flange | 1 |
| 2,Wheel removal wrench | 1 | |
| 3,Hexagonal wrench | 1 | |
| 4,Leveling screws and foot pads | 1 | |
| 5,Grinder guide oil | 1 | |
| 6,Toolbox and adjustment tools | 1 | |
| 7,Hanging rings | 1 | |
| 8,Grinding wheel | 1 | |

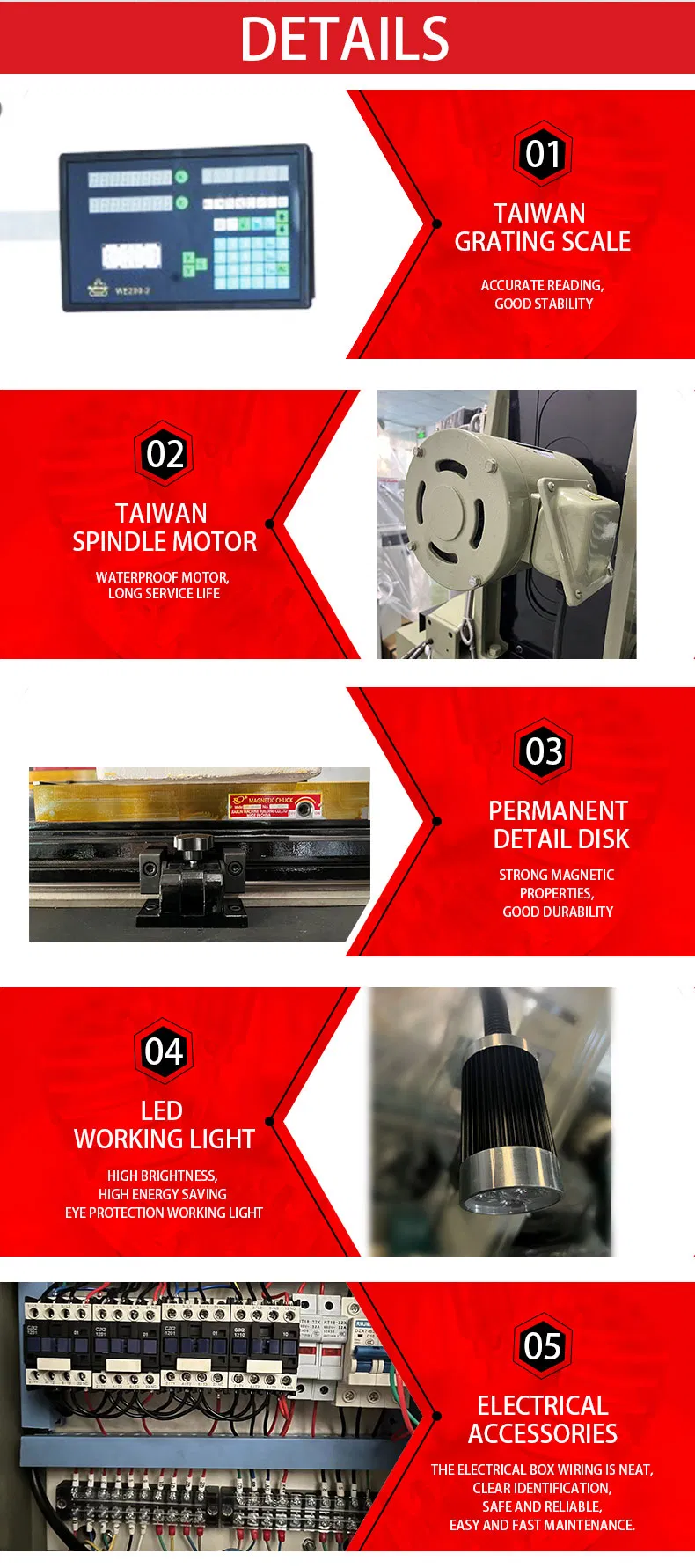

| Special parts for machine tools | 9,Grating electronic ruler | 1 |
| 10,Permanent detail disk | 1 | |
1.What is the MOQ for your production?
A. The Minimum Order Quantity (MOQ) depends on your specific requirements for color, logo, and other customizations. For some standard items, which we have in stock, the MOQ is just 1 set.
2.How do you control the quality of the products?
A. Quality is our top priority. We implement stringent quality control measures at every stage to ensure our standards are consistently met. Our principle is to provide customers with superior quality, competitive pricing, and excellent service.
3.What are the main products of your company?
A: We specialize in manufacturing a diverse range of machines, including CNC Machines, Lathes, Milling Machines, Grinding Machines, Vertical Machining Centers, Drilling Machines, Radial Drilling Machines, Sawing Machines, and many more.
4. What are your trade terms?
A: We accept a wide range of trade terms including Ex-works (EXW), FOB (Free On Board),
CFR (Cost and Freight),
and CIF (Cost, Insurance, and Freight)..What are your payment terms?
A: Our payment terms are T/T (Telegraphic Transfer), with a 30% initial payment upon order placement and the remaining 70% balance before shipment.
6.What CNC systems do you use?
A: We offer a variety of CNC systems including FANUC, SIEMENS, MITSUBISHI, SYNTEC, and HCN. The choice of system depends on your specific preference and application requirements.
7.How can I choose the most suitable machines?
A: Please send us the drawings and details of your products and their applications. Our team of experts will recommend the most suitable machines tailored to your needs.
8.What kind of packaging do you offer?
A. We typically use robust plywood cases to ensure that all goods are delivered in pristine condition. Customized packaging options are also available upon request.
9.Can your plant do OEM?
A: Yes, we provide both OEM and ODM services to meet a variety of customer requirements.
10.How about the warranty?
A: Our products come with a one-year warranty after delivery. Additionally, we offer lifetime service support for our machines, ensuring peace of mind even beyond the warranty period.
